Define the condition before intervention
Drone inspection, RGB imagery, thermography, moisture measurement, geometry and preliminary assessment by subzone.
View method and instruments ↘
Regional scale
Palmilla development · High-resolution aerial overview
01 / 08 · Documented field portfolio
Real projects · Los Cabos · La Paz
The solution begins before application.
We waterproof roofs, cisterns, sumps and high-traffic areas; sell and supply Imperquimia materials; and assess conditions with drones, thermography and field instruments before intervention.
- 360° assessment
- Specification
- Execution
- Technical report
01 We inspect
02 We measure in real time
03 We assess
04 We specify
05 We execute
06 We document
Three service paths
Start with what your project needs today.
Assessment, supply and execution can be contracted separately or integrated into one technical record.
Purchase a compatible system
Imperquimia system selection, quantity calculations, accessory review, order preparation and coordinated delivery.
Browse technical catalog ↘Build the system and document it
Preparation, specialized application, stage-by-stage control, release criteria and final technical report.
Review documented cases ↘Interactive models
We don't just describe the project. You can open the project itself.
Three direct links to navigable evidence. Explore 3D models, maps, time series and measurements without relying on a static presentation.
Field capability

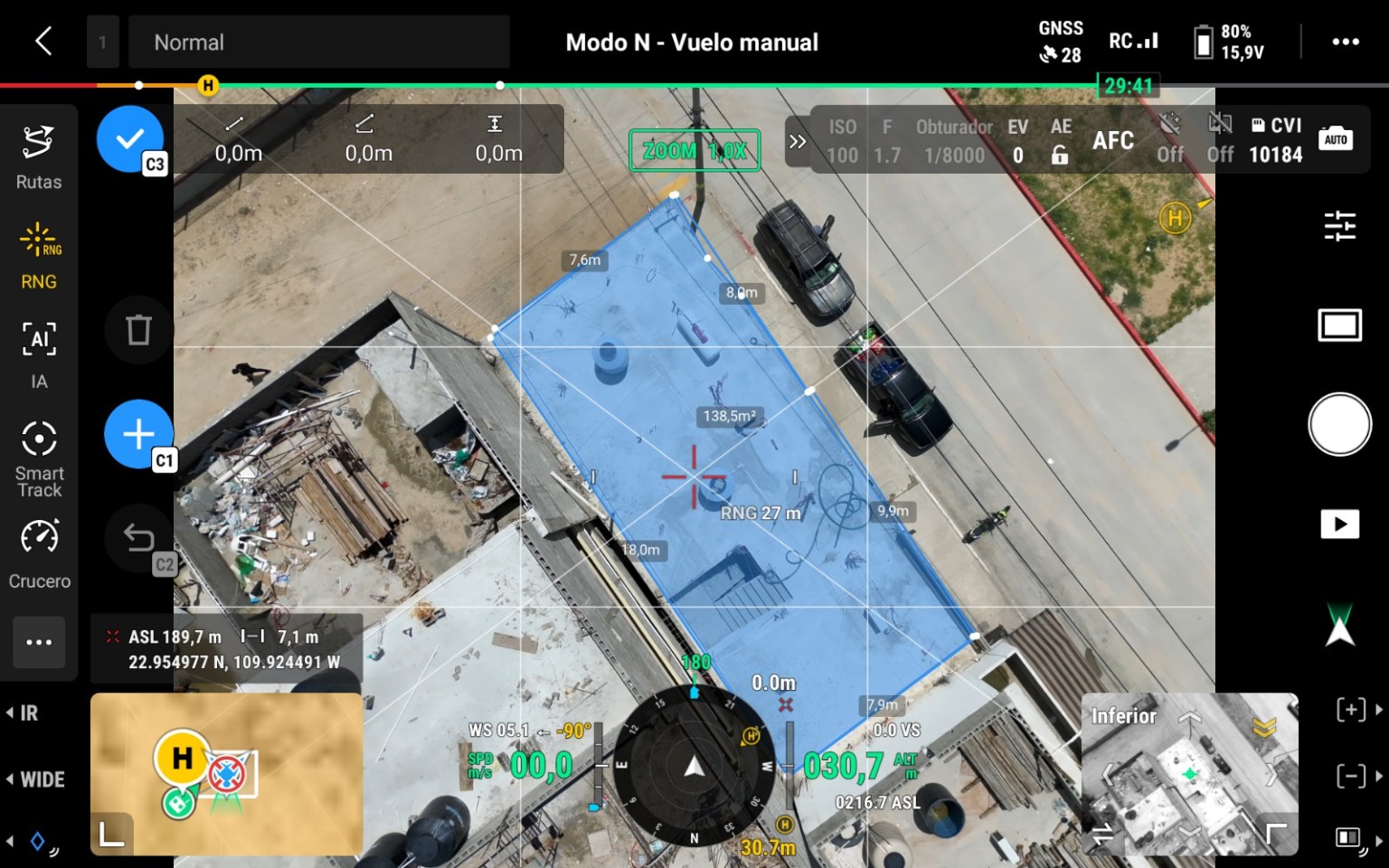

Real-time aerial measurements
During flight, we outline polygons directly on the image and obtain preliminary values to coordinate decisions before the full processing workflow is complete.

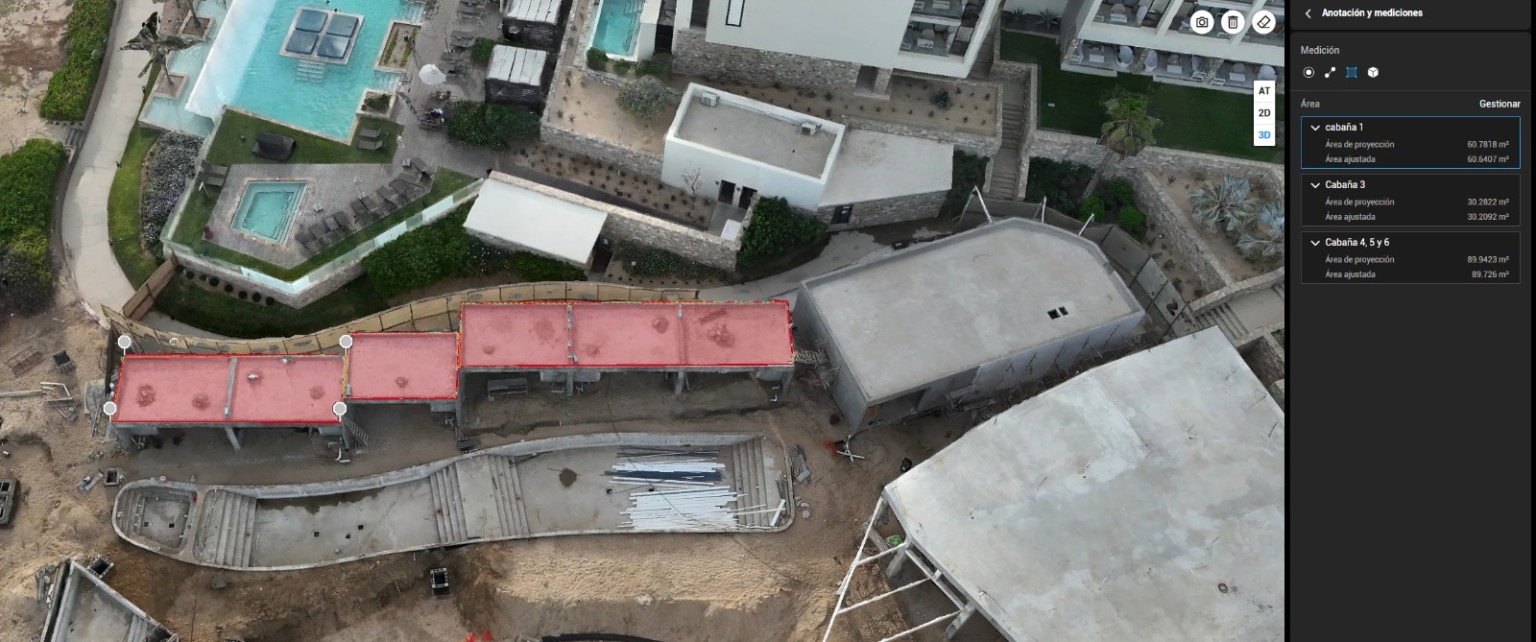

- 01AreasRapid quantification of surfaces and subzones.
- 02DistancesPerimeter lengths and point-to-point references.

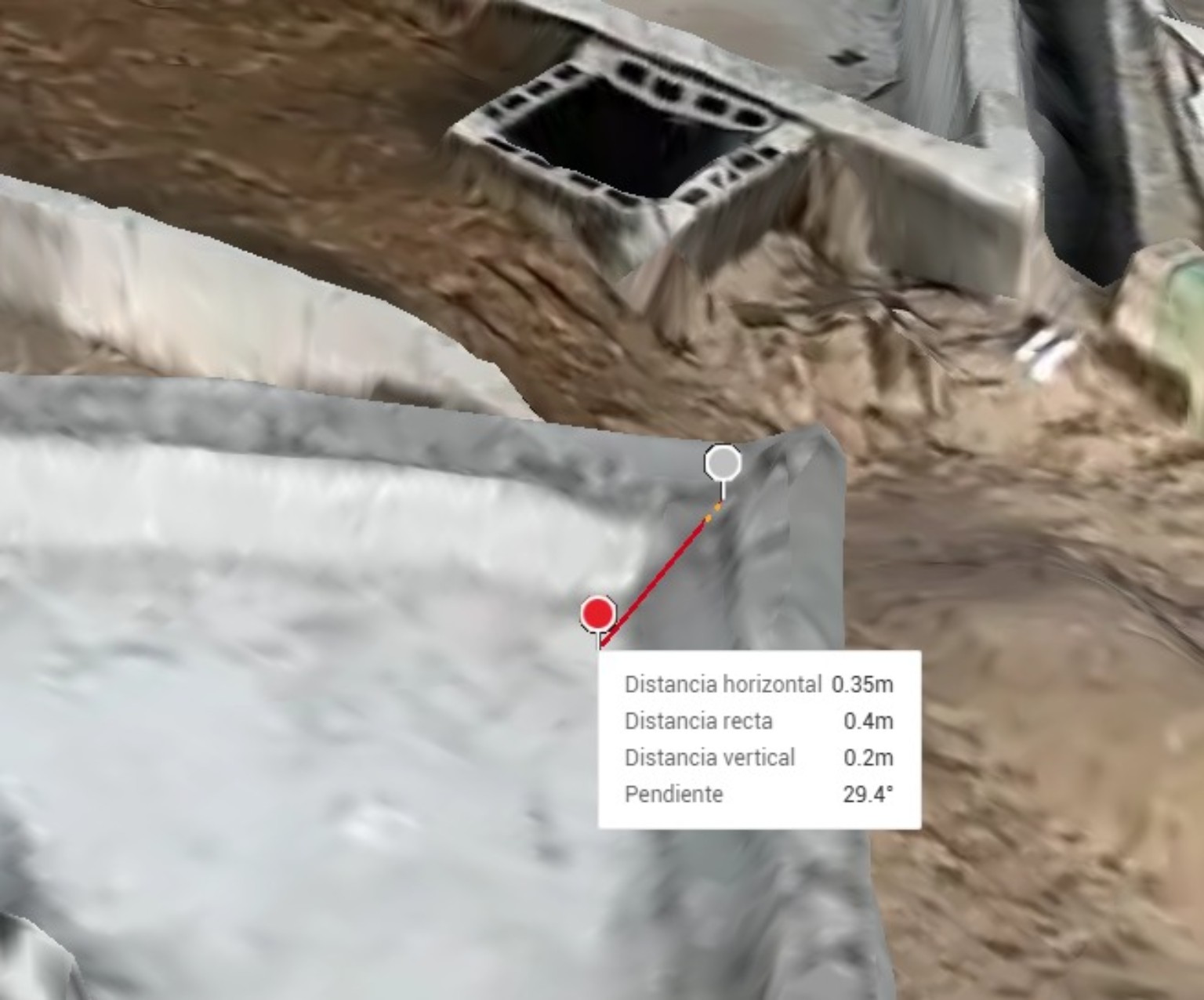

- 03SlopesGeometric comparison of interfaces and elevation changes.
- 04TelemetryAltitude, GNSS position, orientation and distance to target.
In-flight measurement accelerates reconnaissance; contractual quantities are subsequently validated on the processed model or through a topographic survey, according to the required tolerance.

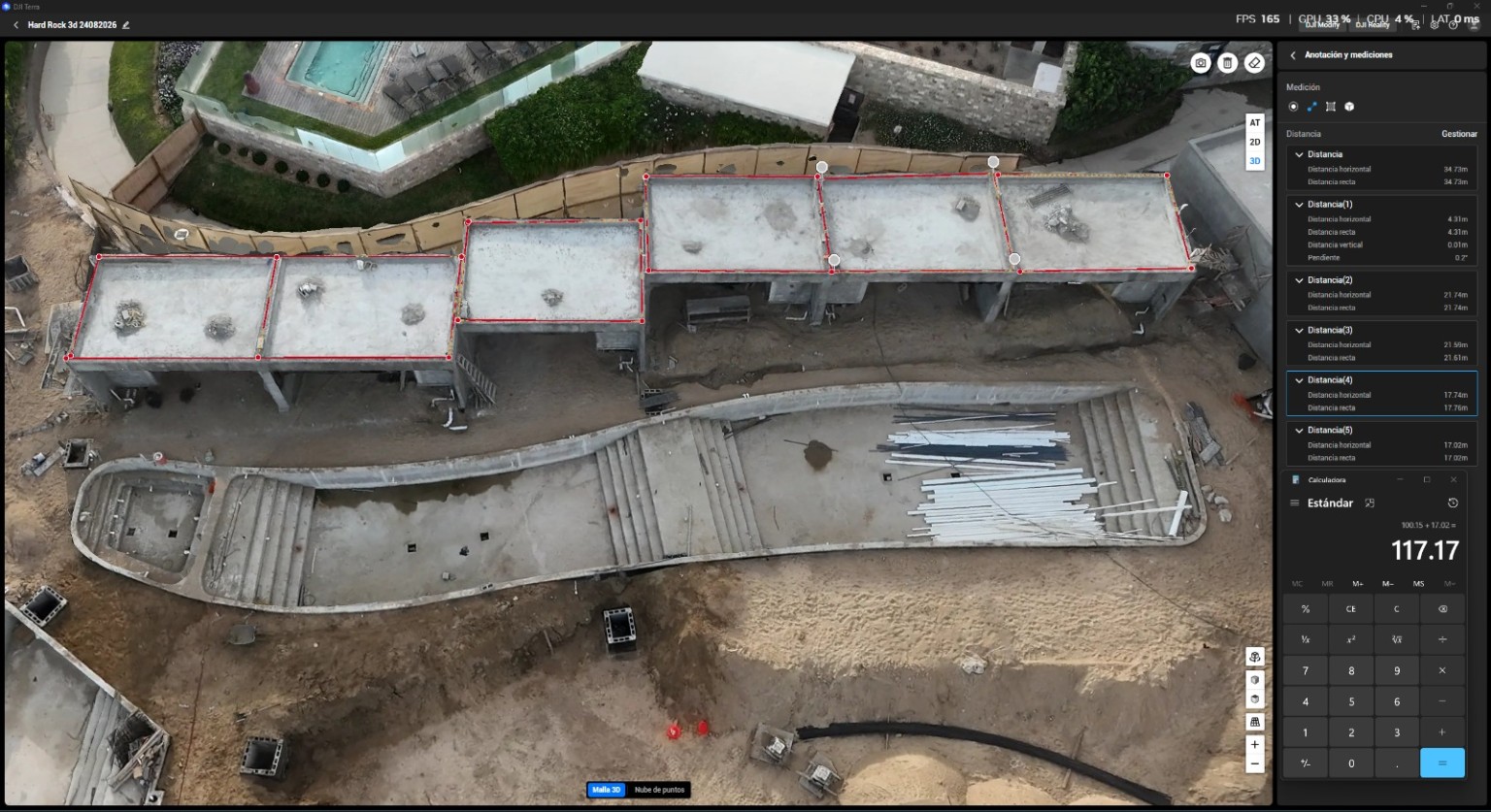

DJI 3DViewer
Hard Rock Hotel Los Cabos
Post-rain 3D model
Review roofs, interfaces, joints and measurements directly within the survey.
Open 3D modelDJI ↗

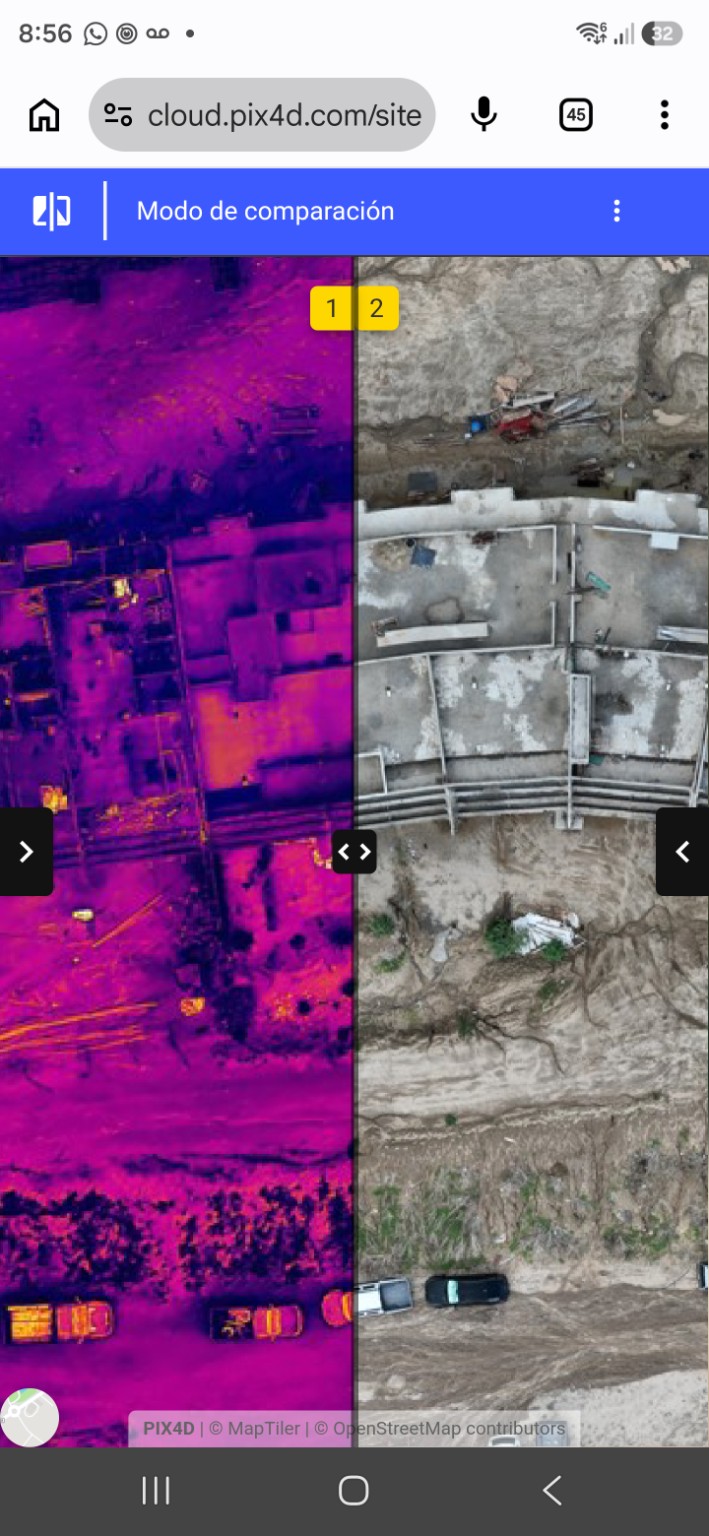

PIX4Dcloud
Monte Rocella
Map and time series
Access the map view, capture dates and project comparison tools.
Open technical mapPIX4D ↗
DJI 3DViewer
Cora Sur
3D model and orthomosaic
Explore the aerial reconstruction used for surface control, remote review and progress tracking.
Open 3D modelDJI ↗The viewers open on external platforms; availability depends on the shared link and each platform service remaining active.
The difference
From symptom to probable cause.
We don't sell a single bucket of product. We deliver a compatible system, controlled installation and evidence for decision-making.
Water intrusion can appear far from its entry point. That is why we connect visual observation, geometry, thermography, moisture and substrate condition before recommending an intervention.
Vértice 360 Method
See what the surface doesn't tell you.
Technology reduces uncertainty; technical judgment turns data into an executable strategy.
RGB
Thermal
Capture
Visual reconnaissance, technical flight and recording of critical points.
Correlation
RGB, thermography, moisture and geometry are read as one combined dataset.
Prioritization
We classify zones and risks to intervene where it truly matters.
Specification
We define preparation, primers, reinforcements, coats and finishes.
Validation
Application control, testing, evidence and documentary closeout.
Aerial platform
DJI Matrice 4T + 4E
Aerial thermography, orthomosaics, 3D models, RTK/PPK workflows, visual inspection and geospatial documentation.
H₂OTramex ME5 / CMEX5
Non-invasive measurement and comparative moisture mapping.
µmDeFelsko PosiTector
Coating thickness and environmental conditions.
ΔTFLIR C5
Handheld thermography to locate and compare anomalies.
Geospatial control
D‑RTK 3 + NTRIP: traceable precision.
The correction source is selected for each site: a local base when autonomy is required, or NTRIP when coverage and a reliable CORS network are available. The goal is not merely to “have RTK,” but to repeat flights and verify the location of every data point.
D‑RTK 3
Provides differential corrections to compatible aircraft without relying on a mobile connection. In rover mode it can also measure control and verification points.
NTRIP
Receives RTCM corrections over the internet from a reference station. It accelerates deployment when coverage and service quality are stable.
FIX, checkpoints and PPK
We record solution status and review POS residuals and control points; when applicable, raw D‑RTK 3 data supports PPK processing in DJI Terra.
Technical scopeRTK improves georeferencing and repeatability, but it cannot by itself correct poor capture, an improperly defined datum or reconstruction errors. Final accuracy is supported by controls and verifiable results.
Instrument readings complement technical inspection; they do not replace professional judgment or substrate verification.
Authorized Imperquimia distributorDistribution · specification · applicationDistributor code: 1046619
Our technical choice
One brand. One system. One responsibility.
We chose to specialize in the Imperquimia family because component compatibility must not be left to chance. From preparation through finish, every layer follows a common logic.
Waterproofing
Acrylic, elastomeric, cementitious, prefabricated and asphalt systems for roofs, terraces, walls and planters.
High-performance systems
Epoxies, polyurethanes and polyureas for immersion, high traffic, chemical exposure and critical details.
Concrete
Grouts, release agents, curing membranes, densifiers, fibers, admixtures, repair and protection.
Finishes
Paints, enamels, sealers, quartz and decorative flakes with specified preparation and finishing.
Chemical compatibility
Traceability
Technical support
Fewer gray areasTechnical reports · project evidence
The process is specified before execution.
A Vértice report converts surfaces, Imperquimia systems, thicknesses, sequences and control points into verifiable instructions for field crews, supervision and warranty.
01 / 02 · complex process ↗
Demonstration system · high performance
A demanding process, explained layer by layer.
The selected sheet covers mechanical preparation, detail repair, epoxy primer, thickness build-up, aliphatic finish and instrument verification before handover.
- Sequence
- 10 stages
- Target thickness
- 2.0 mm dry
- Control
- 6 hold points
- Deliverable
- Public report
PrepareDetailBuildMeasure
Quality control · HP1–HP6
Construction details and hold points.
The second sheet covers coves, cracks, joints, penetrations and drains with a minimum inspection plan. Work is released only when both the evidence and control point are complete.
- FLIR C5 and Tramex for comparative readings
- PosiTector 200 D for dry-film thickness
- Photo record, batches and responsible personnel
02 / 02 · details and control ↗
Orthomosaic
Continuous georeferenced view to locate findings, measure areas and compare progress.

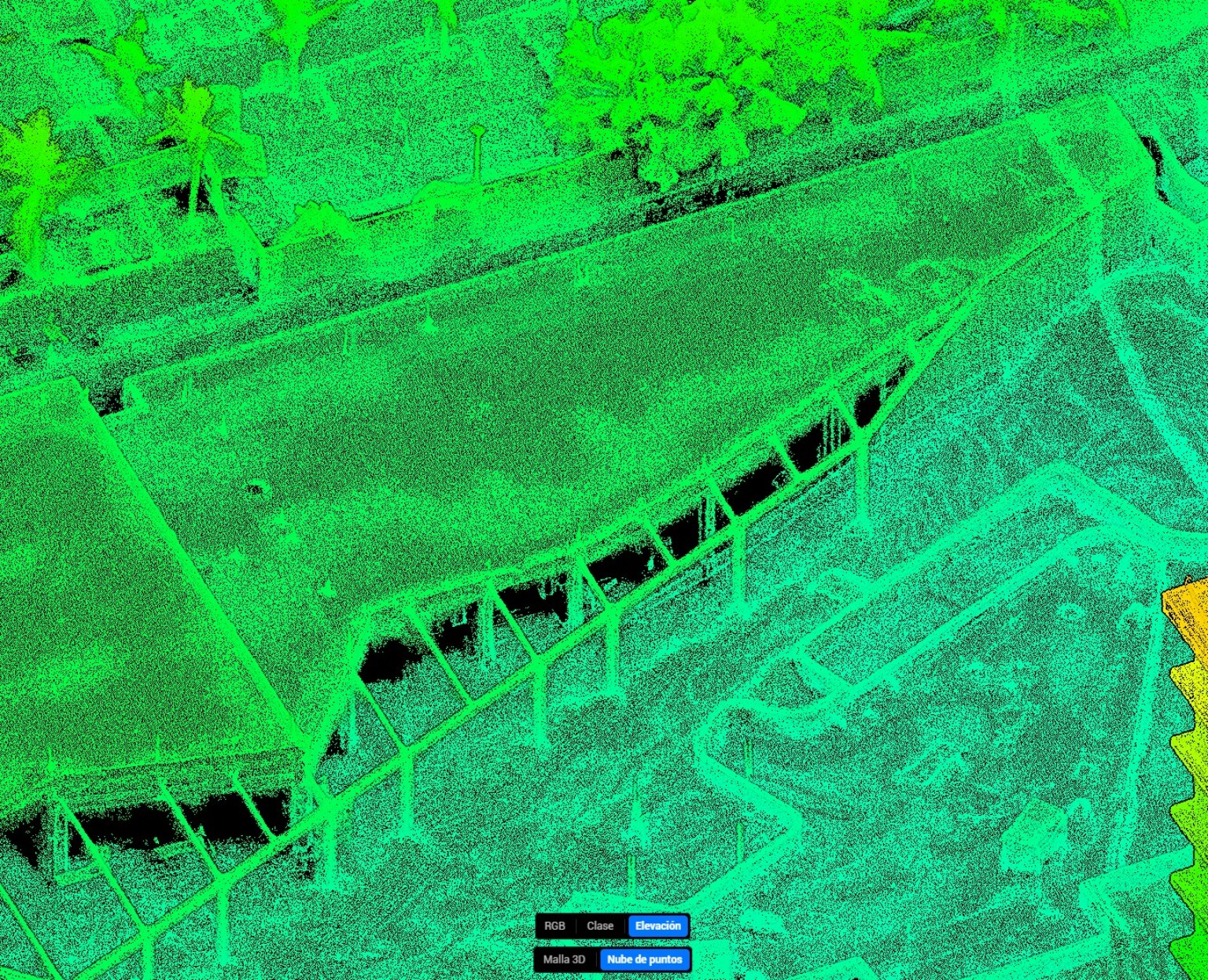

3D model
Point cloud and navigable reconstruction for reviewing roofs, interfaces and complex geometries.
Surface and drainage
Reading elevations, slopes, depressions and probable drainage paths.
Instrument map
Correlation of RGB, thermography and comparative moisture measurements by cell or subzone.
System report
Preparation, Imperquimia products, consumption rates, thicknesses, reinforcements and acceptance criteria.
Technical closeout
Before/during/after evidence, tests, records, recommendations and warranty traceability.
Specialized application
Complete systems for real conditions.
We prepare, apply and validate each solution according to the surface, exposure and expected performance.
Marea · technical roof
01
Marea development · aerial evidence
Roofs and slabs
The image brings roof areas, parapets, equipment rooms and level changes into one frame to plan continuity, interfaces and critical details.
02
Tramonti · cistern
Cisterns and immersion areas
The RGB view shows the wall-to-slab interface, piping and exposed concrete areas; the thermal image records the same area to correlate conditions before repair and waterproofing.
03
Terrace · application evidence
Urelastic 100 AR + Urelastic 400 AL
Terrace liquid-polyurethane system sequence: continuity with Urelastic 100 AR and finish with Urelastic 400 AL across the floor, curbs, perimeters and plane changes.
- Continuous membrane
- Gray finish
- Perimeter details
Floors, finishes and chemical protection
Performance is also built underfoot.
We install industrial and high-traffic floors, quartz or flake finishes, and epoxy coatings for sumps, kitchens, parking areas and technical spaces. Preparation, detailing and finish are defined by use and exposure.
- High-traffic epoxy and polyurethane floors
- Quartz, flake and decorative finishes
- Sumps and areas exposed to moisture or chemicals
Imperquimia store and supply
Materials available. Technical guidance included.
Direct sales and jobsite supply from Los Cabos and La Paz. We help select the system, calculate quantities and coordinate orders based on the substrate and actual project conditions.
Specialized distribution
A store backed by the team that also specifies and installs.
The sales counter is integrated with the technical office. Field experience lets us review compatibility, coverage rates, substrate preparation and application sequence before filling an order.
- Coverage
- Los Cabos + La Paz
- Brand
- Imperquimia specialists
- Service model
- Counter sales + jobsite supply
- Store
- +52 624 133 0765
Location on Google Maps
Vértice Store · Los Cabos
Blvd. Constituyentes s/n, Lomas AltasCabo San Lucas, B.C.S. 23472 Open route in Google Maps
Location on Google Maps
Vértice Store · La Paz
Blvd. Virginia Peralta, between Blvd. Forjadores and YucatánCol. Adolfo Ruiz Cortines, ZIP 23040
La Paz, B.C.S., Mexico Open route in Google Maps
Material sales
SBS membranes, acrylics, polyurethanes, epoxies, sealants and solutions for concrete repair and protection.
Installed capacity
Warehouse, racking, product receiving, order preparation and regional fulfillment. Availability is confirmed when quoting.
Sales counter
Direct assistance selecting packaging, coverage, accessories and quantities for the work area.
Technical office
Plan review, orthomosaic generation, 3D model processing, aerial mission planning, area quantification, georeferenced drawing production, intercoat compatibility and process sheets.
Jobsite delivery
Order coordination and local delivery to the work area according to confirmed stock, volume and route.
Customer service
Quotes, order tracking, supply traceability and support before, during and after purchase.
Initial technical catalog
Search by need, not only by product name.
Select a family to review reference systems. Packaging, coverage, availability and compatibility are confirmed before supply.
Aero Plus SBS 4.5 PG
Prefabricated roof membrane with details and installation sequence defined for each work area.
Request store quote ↗Sellokote Elastoflex
Flexible cementitious layer for surfaces requiring continuous protection.
Request store quote ↗Sellokote Tank Autosellante
Cementitious system used as part of solutions for tanks, sumps and wet areas.
Request store quote ↗Guardquim Epoxi 630 Aqua
Epoxy finish integrated into systems where moisture, thickness and curing are controlled before service.
Request store quote ↗Guardquim Epoxi RP-5 Tar
Reference coating for anticorrosion protection in sumps and exposed structures.
Request store quote ↗Guardquim Poliurea Manual 2K
High-performance membrane applied in coats and thickness-verified within specified systems.
Request store quote ↗Dureflex 540 P
Detailing material incorporated into repairs, interfaces and critical system points.
Request store quote ↗Quimitop Vertical 412
Repair mortar used to restore prepared sections before the protective system.
Request store quote ↗This catalog guides the conversation; it does not replace substrate review or the current technical data sheet. It does not show prices or promise stock without confirmation.
Inventory and fulfillment
Visible product. Complete system.
We prepare materials, accessories and technical documentation so every order leaves with clear compatibility, coverage and application sequence.
Contact the storeSix flagship cases
Projects are controlled from the air and through their technical records.
A concise selection of projects with concrete evidence: navigable models, process reports and instrument controls connecting assessment, execution and follow-up.
Hospitality · photogrammetric control
Hard Rock Hotel Los Cabos
Real-time aerial measurements and post-rain 3D reconstruction document roofs, interfaces, joints and monitoring zones. The model provides a digital return to the site and a common reference for coordinating intervention.
System under monitoringGreen Aero Plus SBS 4.5 PG · seismic-joint details · technical release by zone
- Images
- 3,413
- GSD
- 2.25 cm/px
- Average height
- 58.09 m
- Fixed POS
- 100%
Data from the September 4, 2026 reconstruction quality report. Viewers open on external platforms.
Main case · hydraulic infrastructure
Saltwater and processed water. Two protection systems.
The desalination plant separates tanks receiving saltwater before treatment from the tank holding desalinated water. Black manual polyurea was applied to the saltwater tanks; a white sanitary-grade epoxy finish was specified for processed water.
- Saltwater
- 396.96 m²
- Manual polyurea
- 2.0 mm / 80 mils
- Processed water
- 535.44 m²
- Moisture
- <3.5% CMEX5
CR / 01 · SALTWATER TANKS
Guardquim Poliurea Manual 2K · black finish
CSP 3–5 mechanical preparation, void repair and detailing at corners, penetrations and interfaces. Two coats of Guardquim Poliurea Manual 2K were applied by hand, with total dry thickness documented using a PosiTector 200 D.
Industrial safety: controlled entry, forced extraction, respiratory protection and atmospheric verification using a multi-gas meter.
- Poliurea Manual 2K
- 2 coats
- 2 mm / 80 mils
- Black finish
CR / 02 · PROCESSED-WATER TANK
Epoxi 630 Aqua · sanitary grade
Two coats of Sellokote Elastoflex and two coats of white Guardquim Epoxi 630 Aqua for the tank receiving desalinated, clean or potable water. Release requires moisture below 3.5%, 12 dry mils and seven days of curing before filling.
- Epoxi 630 Aqua
- White finish
- Sanitary grade
- 7 days before filling
IS / CONFINED SPACE
Safety is part of the application system.
Work inside the tanks was documented with forced extraction and ventilation through ducting, atmospheric verification using a multi-gas meter, controlled entry and respiratory protection during application. The instrument checks O₂, LEL, H₂S and CO according to the conditions of each work area.
- Multi-gas meter
- Extractors + ducting
- Respiratory protection
- Controlled entry
WWTP / METAL TANK · ANTICORROSION PROTECTION
Treatment plant · technical intervention
A compact work area. A complete anticorrosion sequence.
The area was small, but the enclosed geometry, metal joints and corrosion points required control at every stage. Protection was built without gaps: treatment, bonding and final continuity.
Quimox→Primer→2 coats of RP-5
Critical infrastructure · in progress
CODEPACDesalination plant · assessment by subzone
RGB and thermal preliminary assessment, Matrice 4T / DJI Terra point cloud, crack review and slope analysis to divide the slab into releasable subzones.
- Geometry
- 3 drainage basins
- Validation
- Adhesion · moisture · preparation
- System
- Sellokote Elastoflex + Guardquim Epoxi 630 Aqua
- Details
- RA-26 + manual 2K polyurea at 2 mm
Vértice criterion: the specification is released by subzone after substrate verification; a product name does not replace proper preparation.
Aerial reconstruction · in progress
CORA SURSurface and progress control
Orthomosaic and three-dimensional model for overall site review, remote inspection and visual condition records using a fully calibrated reconstruction.
- Images
- 1,822
- Coverage
- 12.63 ha
- GSD
- 0.90 cm/px
- Calibration
- 100%
Data from the August 21, 2026 reconstruction quality report.
Selected project portfolio
Additional work that demonstrates Vértice's scale.
The selection prioritizes technical scope, continuity of client relationships and documentary support; it is not an inflated logo list.
St. Regis Los Cabos
15 buildings + outdoor areasRemoval of existing systems and waterproofing with spray-applied polyurethane and liquid membranes in a multi-building hospitality program.
Cabo Costa / Carpenti
Marea · Vela · Ballena · BonitoDocumented work areas including retaining walls, elevator pits, roofs, maintenance, painting, floors and finishes.
Playa Grande GSR
Buildings N · O · PSlab and pan remodeling record, supplemented by an independent post-rain technical review for warranty defense.
Documented experience
- HospitalityHard Rock Hotel · Nobu Hotel · St. Regis · Hyatt Ziva · Cabo Azul · Sandos Finisterra · Hotel Esperanza
- DevelopmentsPedregal Towers · Monte Rocella · Vista Velas · Solaria / Lumaria · Cabo Costa · Camino del Mar · Marea · Maravillas
- InfrastructureDOI Cabo Real desalination plant · CODEPAC Los Cabos II desalination plant · cisterns · WWTP · tanks · technical rooms
- Retail and servicesPlaza Krystal · Grupo Sanborns · DAX · Sears · OXXO · KFC
- High-performance systemsSBS membranes · epoxies · polyurethanes · polyureas · immersion · critical joints
Project archiveSelection of documented recordsShow directory
Hospitality and developments
Hard Rock Hotel · Nobu Hotel · St. Regis · Cabo del Sol · Anima Village · Sea Breeze · Ventanas La Joya · Marea · Monte Rocella · Lumaria · Vista Velas · Cora Sur · Pedregal Towers · South Baja · Villa Group · Casa Nima · Nolah · Casa Blanca Puerto Los Cabos
Infrastructure and specialty work
Aerococinas · DOI Surf Town · CODEPAC Los Cabos II desalination plant · DOI Cabo Real desalination plant · Tramonti Plaza · DOI MC3 Walls · DOI Showroom · HD Vía de Lerry Building · Country Club · San Lázaro Club · Brewery
Retail and institutional
OXXO Tamaral · OXXO Los Barriles–ANCON · OXXO Sodio · Colegio Liceo · B&F · Criollo · Carpenti · Cerrito del Timbre · Playa 1era Etapa
Vértice 360 preliminary assessments
First we define the problem. Then we specify the solution.
A preliminary assessment does not promise artificial certainty. It organizes evidence, identifies pending verification and turns a large surface into subzone decisions.
Evidence
RGB photography, thermography, moisture, geometry, history and field observation.
Interpretation
Technical hypotheses distinguished from observed facts and tests that are still required.
Release
Clear criteria to repair, test, accept or stop a subzone before coating.
Curated technical-record selection
We do not show a gallery. We show how a decision is supported.
Evidence was selected for traceability, correspondence between captures and decision value. Each case adds a different layer: visible condition, thermal response, aerial geometry or execution report.
- Documented cases
- 06
- Selected evidence
- 09
- Core rule
- Correlate
PA / NOBU HOTEL
Correlation in the same frame
Two layers. One surface to verify.
The pair preserves the same geometry so joints, penetrations and material changes can be revisited without losing position. Thermal imagery prioritizes; instrument verification confirms in the field.
01LocateContinuities, patches and details in RGB.
02CompareRelative thermal patterns, not automatic diagnoses.
03Verify82-cell Tramex ME5 matrix at two depths.
Rigor criterion: a thermal anomaly alone does not equal moisture. It defines where to measure, open or test before release.
PA / CODEPAC · JUL 18 2026
Release by area
Do not release the building as one uniform condition.
The aerial review separated slabs LC-01 through LC-04. The record holds LC-03 due to higher adhesion risk and requires sounding, test preparation and CMEX5 mapping before specification.
- RGB + thermal
- Adhesion
- CMEX5
PA / COUNTRY CLUB · JUL 2026
Buildings A–F
Interfaces are reviewed before open areas.
Roof tile, pergolas, parapets, equipment and penetrations produce different responses. The model and thermography organize the route; conclusions depend on verifying every material and interface.
- Nadir + oblique imagery
- 3D model
- Priorities
AF / HARD ROCK
Aerial surface inventory
One capture locates work areas, continuity and pending zones.
Aerial coverage documents the system without fragmenting context. It serves as a baseline for quantities, inspection sequencing and comparison of future progress.
- Visual traceability
- Sequence
- Progress
TR / CISTERN · JUL 24 2026
Documented execution
The repair is evidenced stage by stage.
Initial condition, opening, preparation and substrate readiness are recorded before restoration. The report links findings to the procedure and acceptance criterion.
- Voids
- Sound substrate
- Traceability
PA / PEDREGAL TOWERS · AUG 2026
Integrated reading
RGB, infrared, depressions and 3D converge in a findings matrix.
The report does more than display images: it relates each indication to a code, subzone and pending verification. This turns three buildings into a prioritized intervention plan.
- Coded finding
- Subzone
- Pending action
AF / OPERATIONS LOG · SEP 2026
Original field evidence
The flight also leaves evidence.
Presenting only the final result is not enough. The log documents mission preparation, equipment operation and the resulting overhead view so coverage can be reviewed in context.
Plan
The visible route allows review of coverage, sweep continuity and configuration before processing.
Execute
The operation is linked to the equipment, inspected area and capture time.
Interpret
The overhead capture preserves context among surfaces, parapets, equipment and interfaces that an isolated photograph loses.
Selection from Vértice 360 records, flight files and photographic operations logs. Document dates: July–September 2026. Images are presented as technical evidence; they do not replace field testing or structural assessment.
Technical warranty defense
A warranty is supported by traceability, not opinions.
We document initial condition, incident and system response to distinguish an interior symptom, a probable entry path and a general failure. Every conclusion is linked to verifiable evidence.
CASE / PLAYA GRANDE GSR
Independent post-rain review
From manifestation to probable source
Exterior inspection with DJI Matrice 4T, interior comparison with FLIR C5 and a second verification with Tramex ME5 / CMEX5 after rain.
Thermography confirms where an anomaly appears; by itself, it does not identify the exact roof entry point.- Findings defined by subzone
- Interior–exterior correlation
- Post-event verification
- Documented conclusion and corrective action
01BaselinePrior condition and installed system
02IncidentDate, rain, location and symptom
03InspectionRGB, thermal and technical walkthrough
04VerificationMoisture, adhesion and substrate
05AssessmentProbable cause and actual scope
06CloseoutCorrection, evidence and record
Documented records and reviews
- Playa Grande GSR
- Cabo del Sol
- Marea
- Morgan Residences
Regional coverage
On the ground where the work happens.
Local infrastructure for assessment, supply, coordination and technical follow-up in Baja California Sur.
01
Los Cabos
Operations, distribution, storage and project-coordination center.
02
La Paz
Technical assessment and regional service center on Blvd. Virginia Peralta, between Blvd. Forjadores and Yucatán, Col. Adolfo Ruiz Cortines, ZIP 23040.
B2B request
Tell us what you need to assess, purchase or install.
The form records your request for follow-up and prepares an organized WhatsApp message. If you need to attach plans, photographs or a report, you can send them afterward through WhatsApp or email.
Send files by email
Every submission is privately recorded with a date and reference number so our team can follow up.
Let's discuss the real problem
Before quoting, let's understand what is failing.
Privacy notice summary
VÉRTICE Recubrimientos Especializados, with a contact address at Blvd. Constituyentes s/n, Lomas Altas, Cabo San Lucas, B.C.S., uses form data solely to record, respond to and follow up on your request. The conversion reference sent to Google Ads does not include your name, phone number, email, description or exact location.
You may request access, correction, deletion or objection, limit the use of your data, or withdraw consent by emailing administracion@verticerecubrimientos.com. Read the full privacy notice
